FLOATING SHELF BRACKET

Choose your length and width

The FLOATING SHELF BRACKET's we make at Welds & Wood are designed to be strong and easy for DIY install.

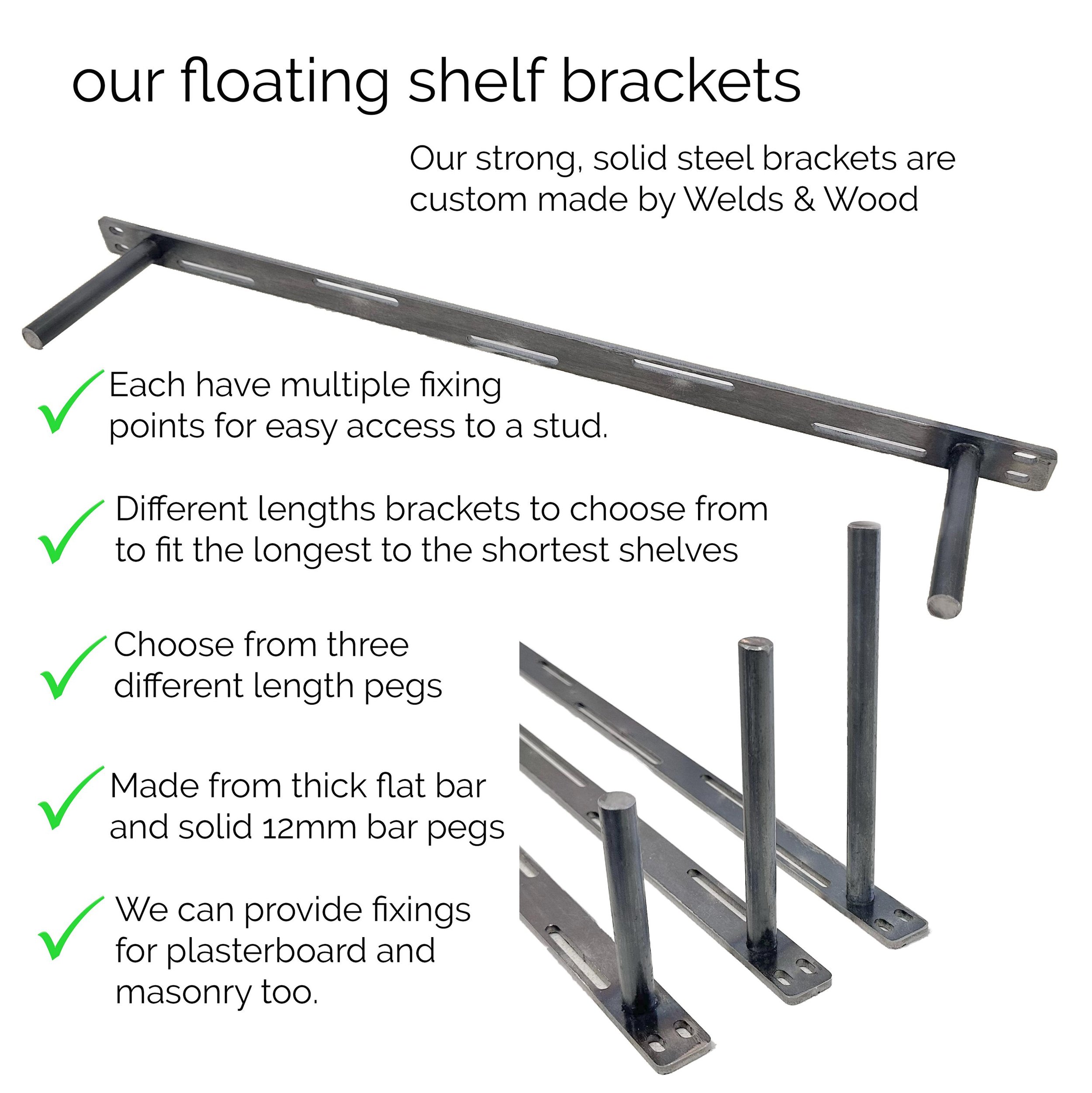

Made from solid steel flat bar and rod, we have a range of lengths and depths to suit your floating shelf. At 22mm wide, the flat bar has been laser cut with a number of slots so you can choose where to screw to your wall. Useful to find a stud as you are not restricted to just a few holes like other brackets on the market.

We started making these as we found the current range in the market didn't fit our purpose. Our brackets are custom designed for our range of floating shelves, however these are perfect for anyone looking to hang their own shelves.

Drill DIA 12.5mm (12.7mm or 1/2inch is actually perfect if you have one though) holes in your shelf to match the rod spacings.

We cut them, weld them and clean them. Then we wipe on a rust preventative lubricant.

PLEASE NOTE:

We make these for our own floating shelves, and make then strong. If you are worried about imperfections such as the natural colour of steel, visible welds at the rear of the pegs, not powder coated etc. then these are probably not for you. But they work, and they work really well..

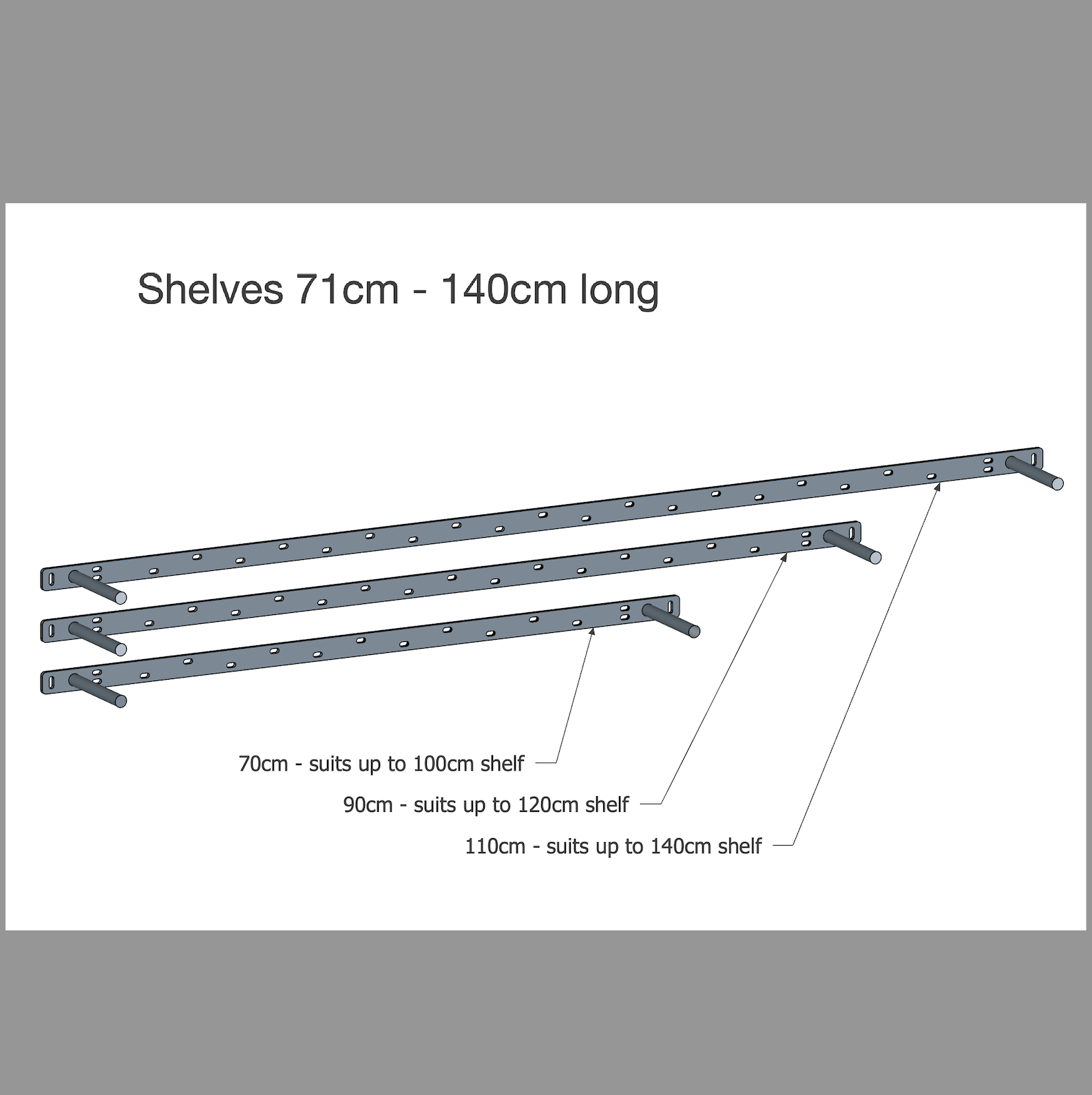

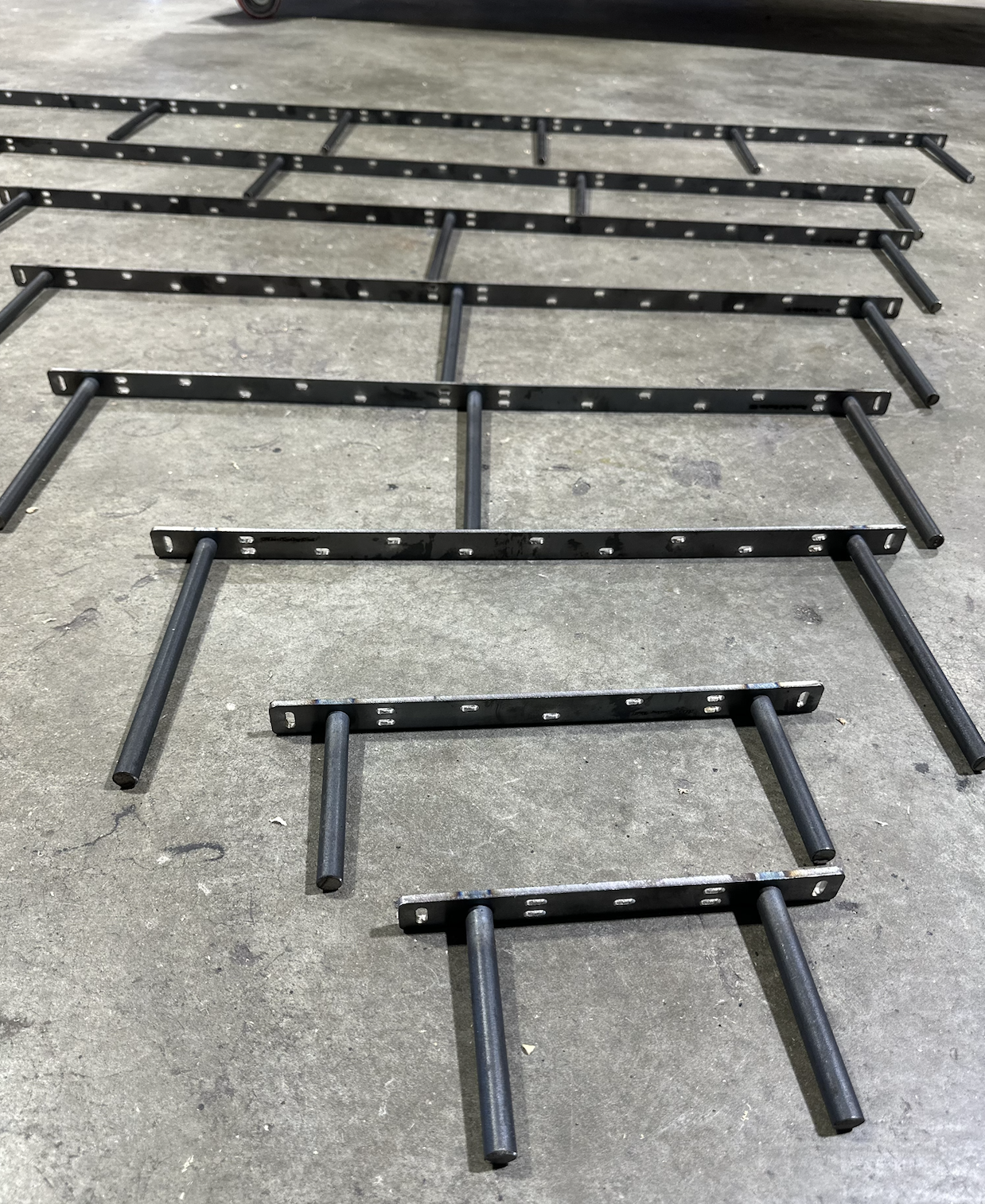

LENGTHS

20cm + 2 Peg (up to 40kgs weight capacity*) Suits up to 40cm shelf

30cm + 2 Pegs (up to 40kgs weight capacity*) Suits up to 60cm shelf

50cm + 2 Peg (up to 40kgs weight capacity*) Suits up to 80cm shelf

70cm + 2 Peg (up to 40kgs weight capacity*) Suits up to 100cm shelf

70cm + 3 Peg (up to 60kgs weight capacity*) Suits up to 100cm shelf

90cm + 2 Peg (up to 40kgs weight capacity*) Suits up to 120cm shelf

90cm + 3 Peg (up to 60kgs weight capacity*) Suits up to 120cm shelf

110cm + 2 Peg (up to 40kgs weight capacity*) Suits up to 150cm shelf

110cm + 3 Peg (up to 60kgs weight capacity*) Suits up to 150cm shelf

130cm + 3 Peg (up to 60kgs weight capacity*) Suits up to 190cm shelf

130cm + 4 Peg (up to 80kgs weight capacity*) Suits up to 190cm shelf

160cm + 6 Pegs (up to 120kgs weight capacity*) | Suits up to 250cm shelf.

*when each peg is installed into either a stud or solid wall using our recommended fixing technique.

DEPTHS of ROD

10cm | 15cm | 20cm

WIDTH of flat bar base | 2.5cm
THICKNESS of flat bar base | 4mm
DIAMETER of pegs | 12mmm

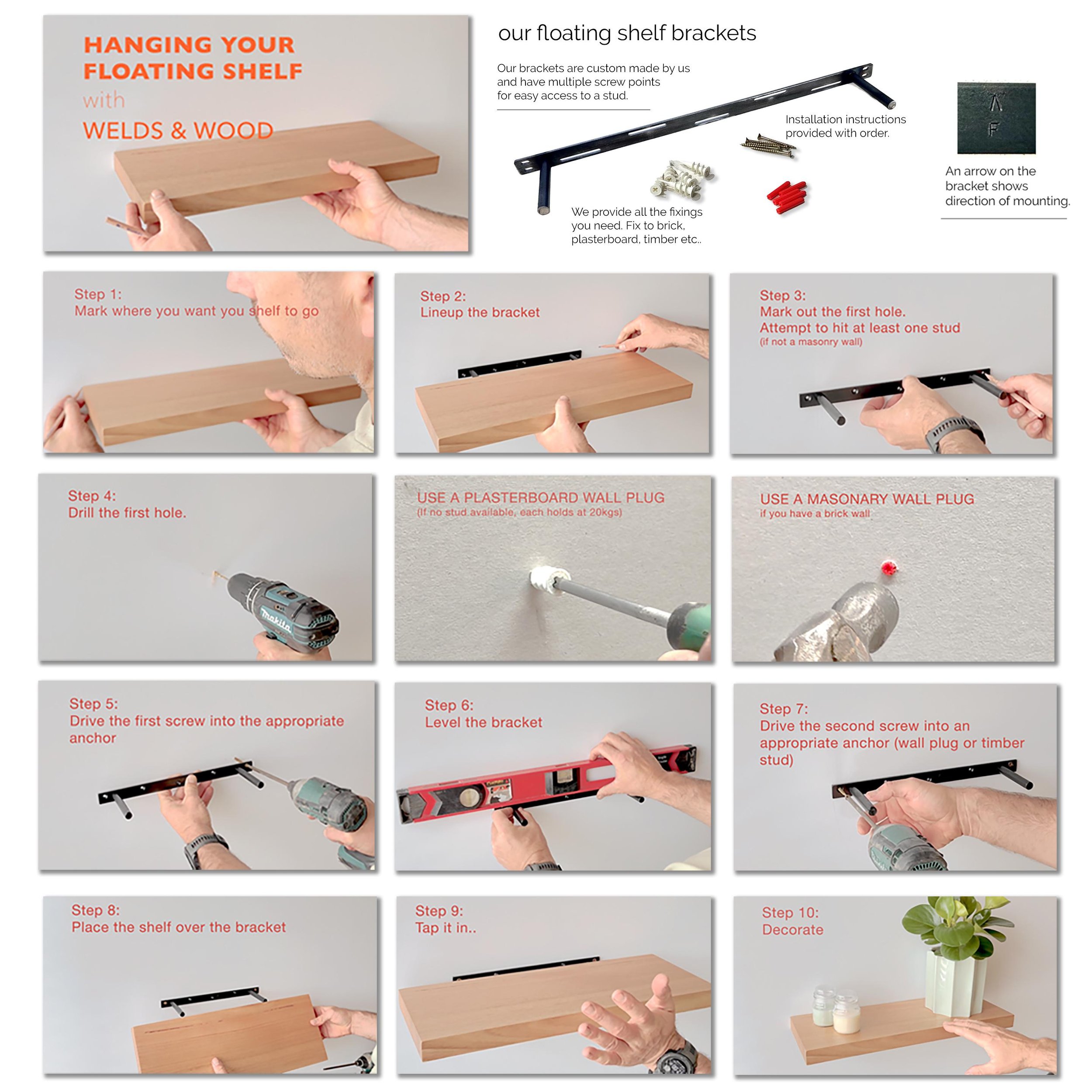

See here for installation instructions

Each bracket has the following maximum weight capacity, including the shelf when:

1) a screws are placed directly next to the steel rod, along the top row of slots.

and

2) the screws are installed directly to masonry using quality heavy duty anchors (not the red or green wall plugs) or timber stud (steel studs may be less due to the flexible nature of steel).

• All 2 peg brackets = 40kgs

• All 3 peg brackets = 60kgs

• All 4 peg brackets = 80kgs

• All 6 peg brackets = 120kgs

Note: If you cannot hit a stud right next to the peg, and you must use a plasterboard anchor, the weight capacity will be that of the anchor specifications.

Our maximum weight is calculated by testing of our brackets with a 20cm peg held into both timber and brick wall.

Not intended for shelves wider than 35cm wide.

Our products are made to order.

Click here to find Current Production Times

Longer production times can occur in peak buying periods.

We ship Australia wide and times are calculated in business days, and begin after we have made, packaged and sent your order. Shipping times can vary depending on carrier delays, time of year etc.

Shipping to Perth - 1 day

Shipping to all other Capital Cities and most regional towns - 5 - 8 days

Shipping to remote or regional areas - Up to 2 weeks

As our products are made to order, we only accept cancellations of orders or changes of mind within 24 hours of purchase. Please choose carefully.
